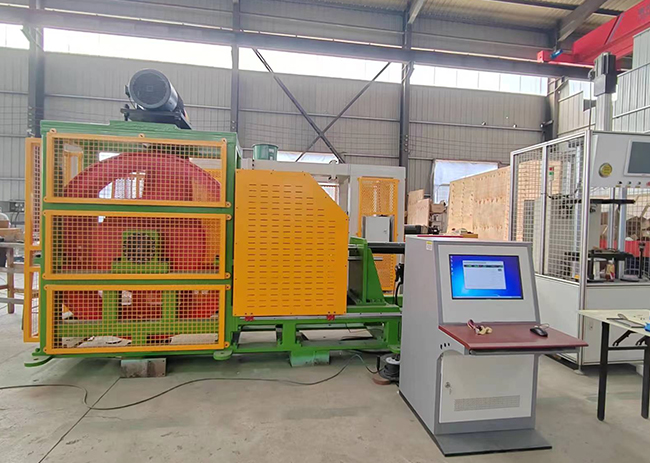

Full range wheel/tire fatigue testing machine | Two-wheeled passenger car commercial vehicle

I. Motorcycle & Electric Vehicle Wheel Tester (4-piece set)
Radial load fatigue: 1 ton load, 120km/h, single/double position.
Rotational bending fatigue: 1000Nm, 100–600 r/min.
Torsional fatigue: 3000Nm, 0.5–5 Hz.
Impact tester: 700kg, 30/90, spring secondary impact.
2, passenger car wheel testing machine
Radial load: 3 tons load, 150 km/h.
Rotary bending: 10000Nm, 2200r/min.
Impact: 1200kg, 13/30/90, electromagnet+cylinder released safely.
3, commercial vehicle wheel testing machine (heavy truck/engineering vehicle)
Radial load: 10 tons heavy load, cylinder load.
Rotational bending: 20,000–50,000 nm large bending moment.
4, tire high-speed durability testing machine
Two-wheeled vehicle: 1 ton, 150–240 km/h, temperature measurement.
Passenger car: 2–3 tons, 150–320 km/h.
Commercial vehicle: 10-20 tons, with barrier blocks and temperature measurement.
Automatic control | Real-time display of data curve | Automatic generation of report
High-precision loading | Complete safety protection | Suitable for factory quality inspection/R&D certification
